Key Features
- Advanced high-voltage lithium energy storage
- Blade Lithium Iron Phosphate (Blade LFP) technology
- 9.4kWh modular battery design
- Expandable from 28.2kWh to 112.8kWh
- High-voltage system architecture
- 95% Depth of Discharge (DOD)
- 100A rapid charge and discharge capability
- Intelligent AI-based EMS and BMS systems
- Aerosol fire-protection system
- Explosion-proof valve protection
- IP65 protection rating
- CAN / RS485 / WiFi / Bluetooth communication
- Remote monitoring and diagnostics

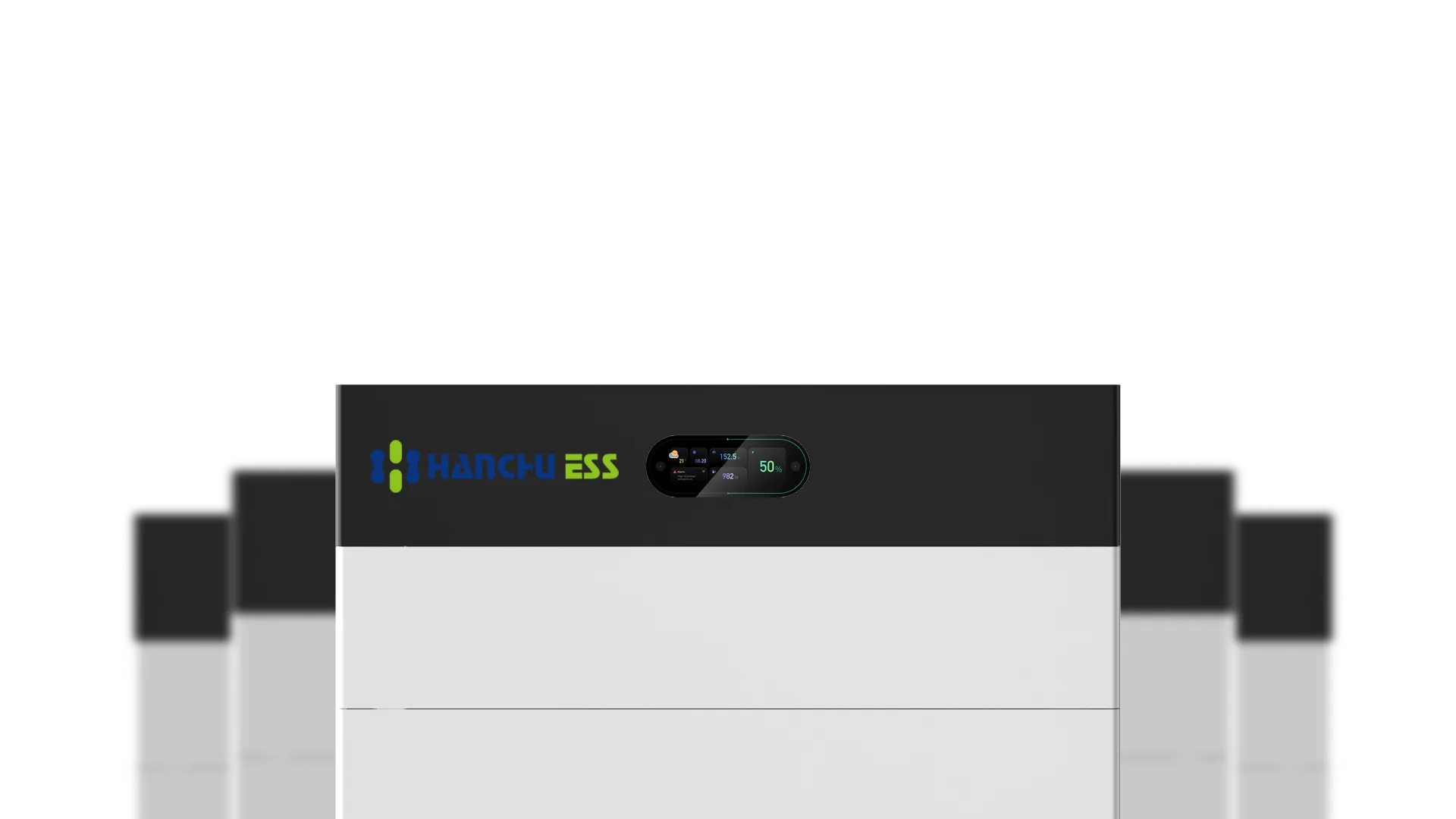

- Touchscreen display interface
- Compact modular installation design
- Natural convection cooling
- 10-year warranty design life
Advanced Blade LFP Technology
The Hanchu HVES system utilizes advanced Blade LFP battery technology, providing:
- Enhanced thermal stability
- Improved operational safety
- Higher energy density
- Long cycle life
- Superior charging performance
- Increased system reliability

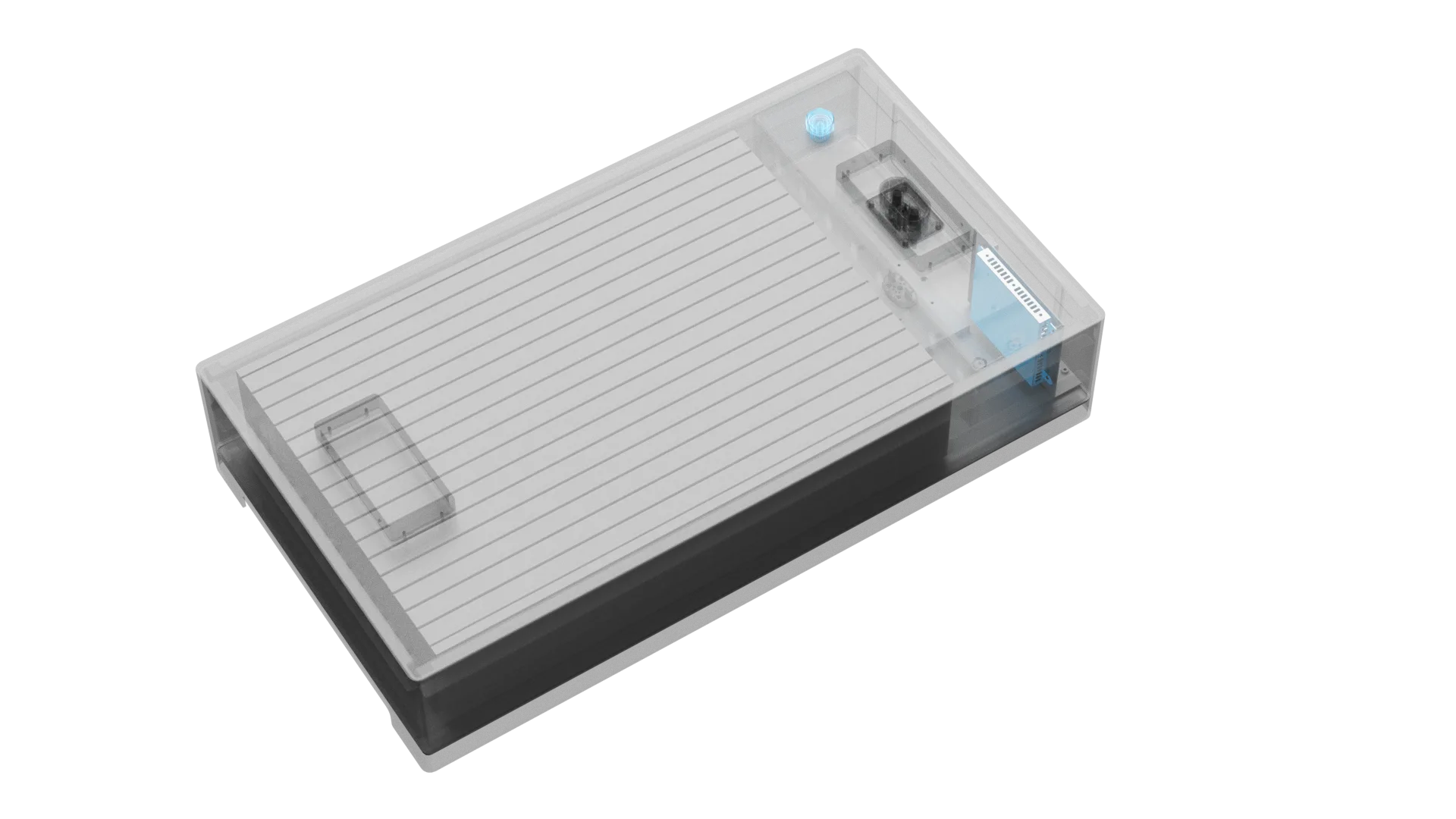

Combined with Cell-to-Pack (CTP) technology, the system achieves optimized space efficiency and improved modular scalability.
Scalable Commercial Energy Storage

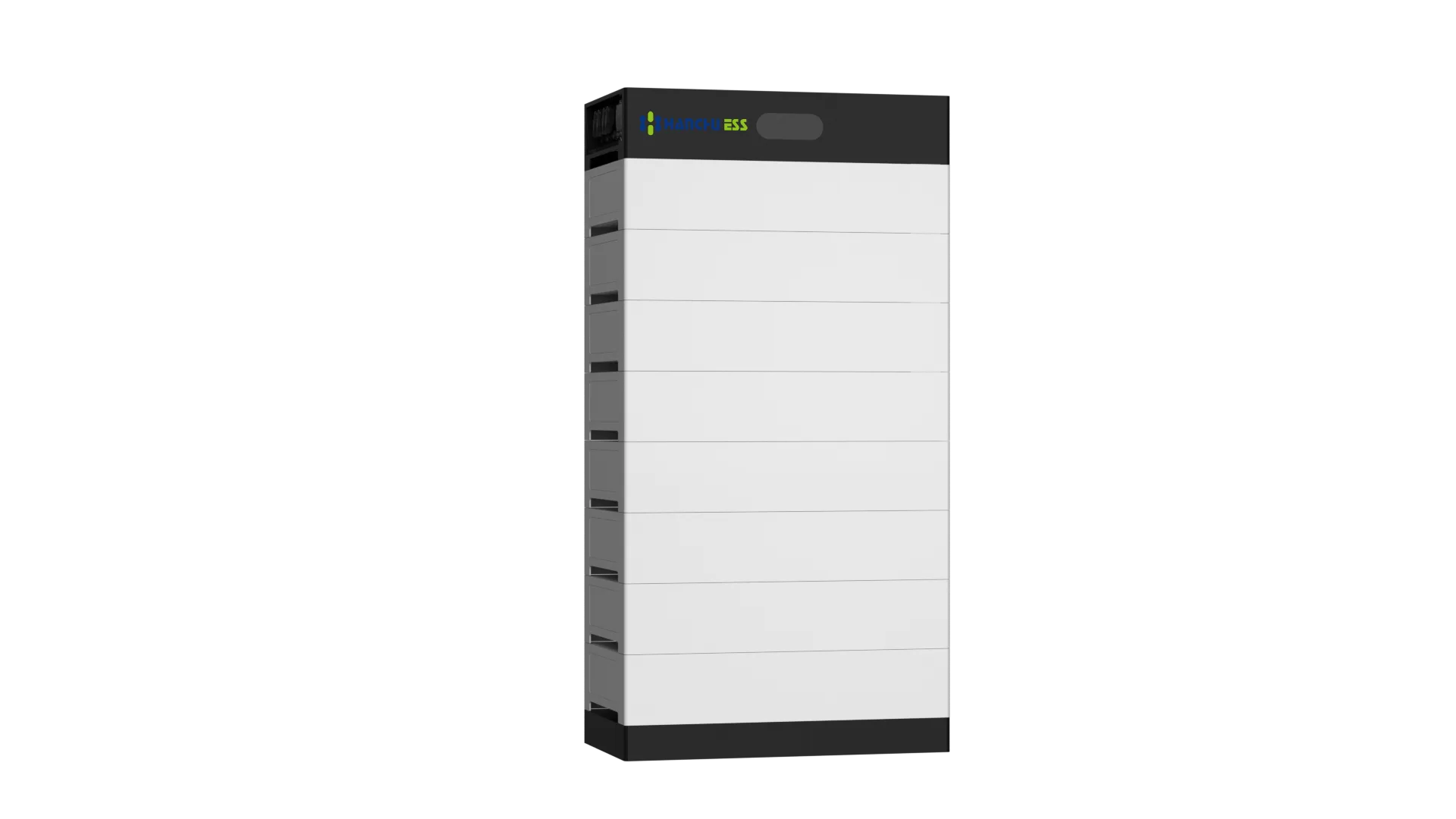

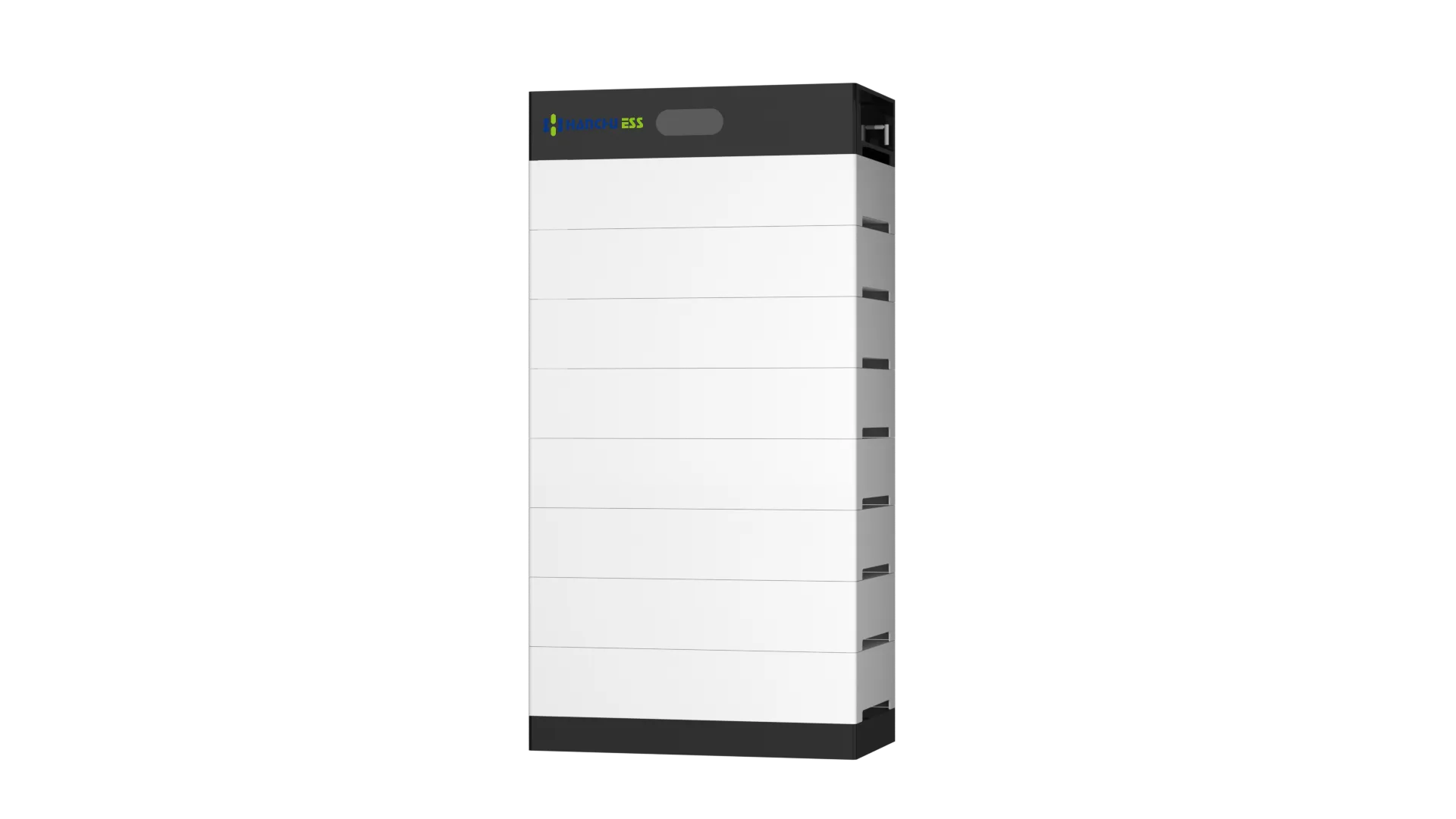

The modular system architecture allows flexible capacity expansion depending on project requirements.
System configurations include:
| Modules | Nominal Energy |
| 3 Modules | 28.2kWh |
| 4 Modules | 37.6kWh |
| 5 Modules | 47.0kWh |
| 6 Modules | 56.4kWh |
| 7 Modules | 65.8kWh |
| 8 Modules | 75.2kWh |
| 9 Modules | 84.6kWh |
| 10 Modules | 94.0kWh |
| 11 Modules | 103.4kWh |
| 12 Modules | 112.8kWh |
This flexibility makes the system ideal for:
- Commercial solar systems
- Industrial backup power
- Peak shaving applications
- Energy arbitrage
- Microgrid systems
- Hospitality and hotel systems
- Agricultural operations
- Mining and industrial sites
Intelligent Energy Management
The integrated AI-based EMS platform provides:
- 24/7 real-time monitoring
- Remote diagnostics and upgrades
- Smart energy optimization
- Predictive maintenance support
- Cloud-based monitoring
- Remote energy management
- Intelligent fault prediction
The system allows users and installers to monitor and manage battery performance remotely through smart platforms and applications.
Ultra Safety & Reliability
Safety is a core feature of the Hanchu HVES Series. The battery system includes:
- Aerosol fire-protection systems
- Explosion-proof safety valves
- Intelligent BMS protection
- Advanced thermal management
- High-voltage safety controls
These features help improve operational safety while extending battery lifespan and system stability.
Rugged Outdoor Protection
With an IP65-rated enclosure, the HVES system is protected against:
- Dust ingress
- Water exposure
- Harsh operating environments
This makes the battery suitable for both indoor and outdoor commercial installations.
Technical Specifications
| Specification | Details |
| Model | CESS-HV-9.4K |
| Battery Chemistry | Blade LFP (LiFePO₄) |
| Module Energy | 9.4kWh |
| Depth of Discharge | 95% |
| Charge / Discharge Current | 100A |
| Protection Rating | IP65 |
| Communication | CAN / RS485 / WiFi / Bluetooth |
| Cooling | Natural Convection |
| Cycle Life | >6000 Cycles |
| Warranty | 10 Years |
| Safety Standards | IEC 62619 / CE |
| Transportation Certification | UN38.3 |
Ideal Applications
- Commercial energy storage
- Industrial solar systems
- Microgrids
- Hospitality and hotels
- Agricultural operations
- Warehouses and factories
- Mining applications
- Peak shaving systems
- Hybrid inverter systems
- Backup power infrastructure
The Hanchu HVES C&I Series 9.4kWh High Voltage Battery delivers intelligent, scalable, and highly efficient commercial energy storage with advanced safety systems, premium lithium technology, and modern AI-based energy management for demanding commercial and industrial energy applications.
