Key Features
- 5.12kWh lithium energy storage
- 51.2V 100Ah configuration
- Lithium Iron Phosphate (LiFePO₄) battery chemistry
- Slim ultra-compact modular design
- Cabinet-friendly installation
- 95% Depth of Discharge (DOD)
- 100A rapid charge and discharge capability
- Intelligent BMS protection
- CAN / RS485 communication
- IP54 protection rating
- Parallel capability up to 16 units
- Lightweight 43.15kg construction
- 10-year warranty design life
- Quiet and maintenance-free operation
Compact Slimline Design
The Hanchu Slim Series battery is engineered to fit neatly into cabinets and compact energy storage installations while maintaining high performance and scalability.
Its ultra-thin design provides:
- Easier installation
- Cleaner system appearance
- Space-saving energy storage
- Simplified scalability

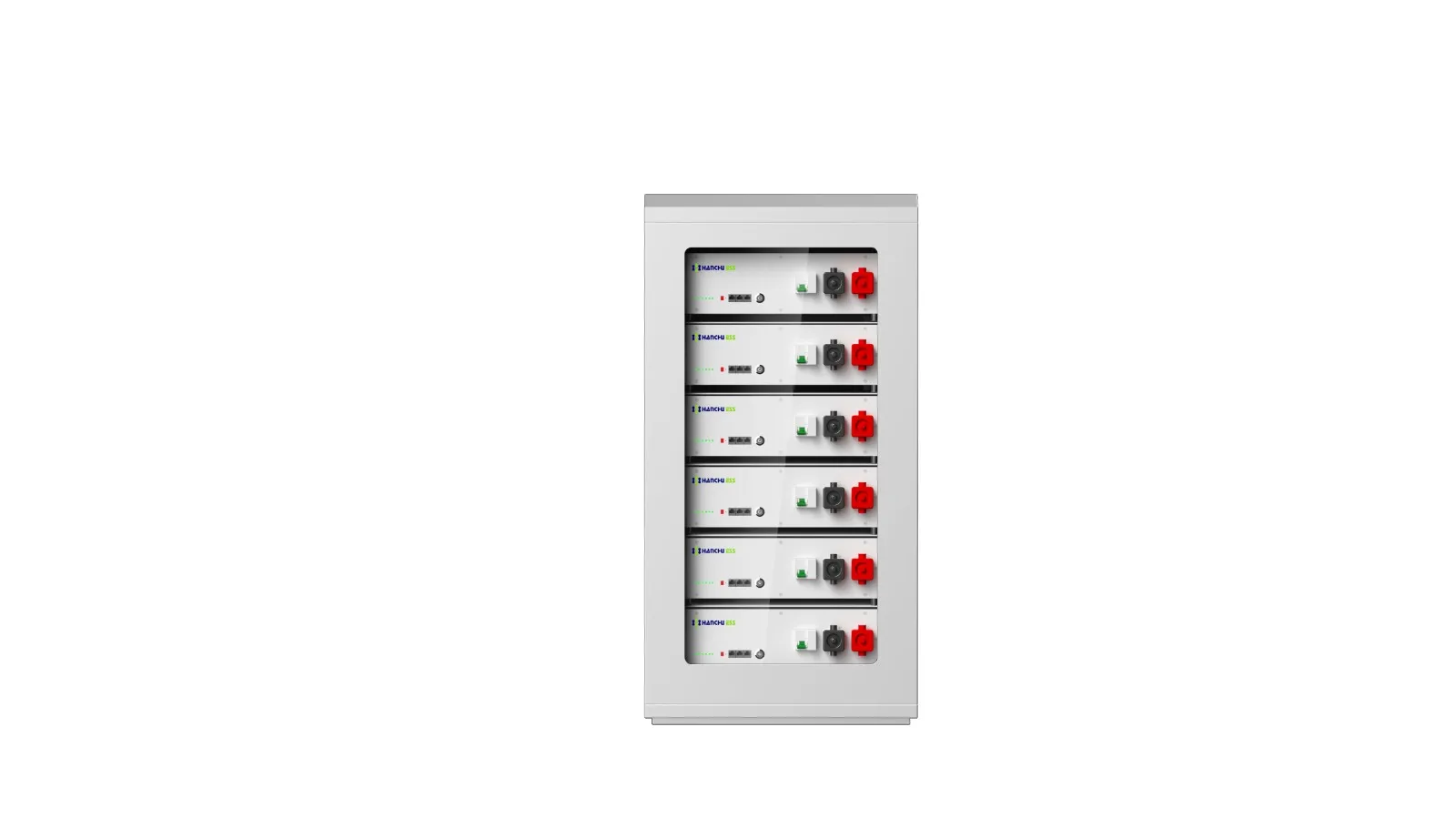

The modular system allows up to 16 batteries to operate in parallel for larger storage requirements.
High Performance Energy Storage
The battery delivers rapid 100A charging and discharging capability, making it suitable for:
- Residential backup systems
- Load shedding solutions
- Solar energy storage
- Hybrid inverter systems
- Essential load backup
- Small business applications
- Security systems
With a high 95% depth of discharge, users benefit from greater usable energy and improved system efficiency.
Intelligent Energy Management
The integrated intelligent BMS continuously monitors and protects the battery system against:
- Overcharging
- Deep discharge
- Overcurrent
- Short circuits
- Overheating
Advanced smart monitoring and cloud-based management allow:
- Real-time monitoring
- Remote diagnostics
- System upgrades
- Battery optimization
- Predictive performance management
The intelligent technology helps extend battery lifespan while improving overall system reliability.
Safe & Reliable Lithium Technology
Built using top-quality LiFePO₄ battery cells, the Hanchu battery provides:
- Superior thermal stability
- Long operational lifespan
- Enhanced safety
- High charging efficiency
- Low maintenance requirements
The battery complies with IEC 62619 and UN38.3 safety standards for reliable and safe operation.
Technical Specifications
| Specification | Details |
| Model | HOME-ESS-LV-5.12K-S |
| Energy Capacity | 5.12kWh |
| Nominal Voltage | 51.2V |
| Battery Capacity | 100Ah |
| Battery Chemistry | LiFePO₄ |
| Operating Voltage Range | 43.2V – 57.6V |
| Weight | 43.15kg |
| Depth of Discharge | 95% |
| Charge Current | 100A |
| Discharge Current | 100A |
| Protection Rating | IP54 |
| Communication | CAN / RS485 |
| Parallel Capability | Up to 16 Units |
| Warranty | 10 Years |
Ideal Applications
- Residential solar systems
- Load shedding backup
- Home energy storage
- Cabinet-mounted battery systems
- Hybrid inverter systems
- Apartments and homes
- Offices and small businesses
- Security and CCTV systems
- Off-grid energy systems
The Hanchu LVES Home L Series 5.12kWh Slim Battery combines modern slimline design, intelligent lithium technology, and reliable high-performance energy storage to provide a clean, scalable, and dependable backup power solution for modern energy systems.
