Key Features
- 3.2kWh lithium energy storage
- 51.2V low voltage battery system
- Lithium Iron Phosphate (LiFePO₄) chemistry
- 100% Depth of Discharge (DOD)
- Intelligent AI-based Energy Management System
- Compact modular design
- IP54 protection rating
- CAN / RS485 / WiFi / Bluetooth communication
- Remote monitoring and diagnostics
- Parallel capability up to 16 units
- Smart BMS protection system
- Lightweight 34.9kg design
- 10-year warranty design life
- Quiet and maintenance-free operation
Intelligent Energy Management
The Hanchu LVES Home L Series integrates advanced IoT and AI-based smart EMS technology that allows:
- Real-time system monitoring
- Intelligent energy optimization
- Remote diagnostics and upgrades
- Battery performance tracking
- Smart energy allocation
- Predictive system management
The platform enables users and installers to monitor battery performance remotely through mobile applications and cloud-based platforms.
High Performance Lithium Storage
The Hanchu 3.2kWh battery is engineered for reliable daily cycling and rapid energy delivery. With support for rapid charging and discharging, the battery is ideal for:
- Residential backup systems
- Load shedding protection
- Hybrid solar installations
- Small off-grid systems
- Essential load backup
- Security and communication systems
The 100% depth of discharge allows for maximum usable energy capacity and improved system efficiency.
Compact Modular Design
The sleek and compact modular construction allows for:
- Easy installation
- Simple scalability
- Space-saving energy storage
- Clean professional installations

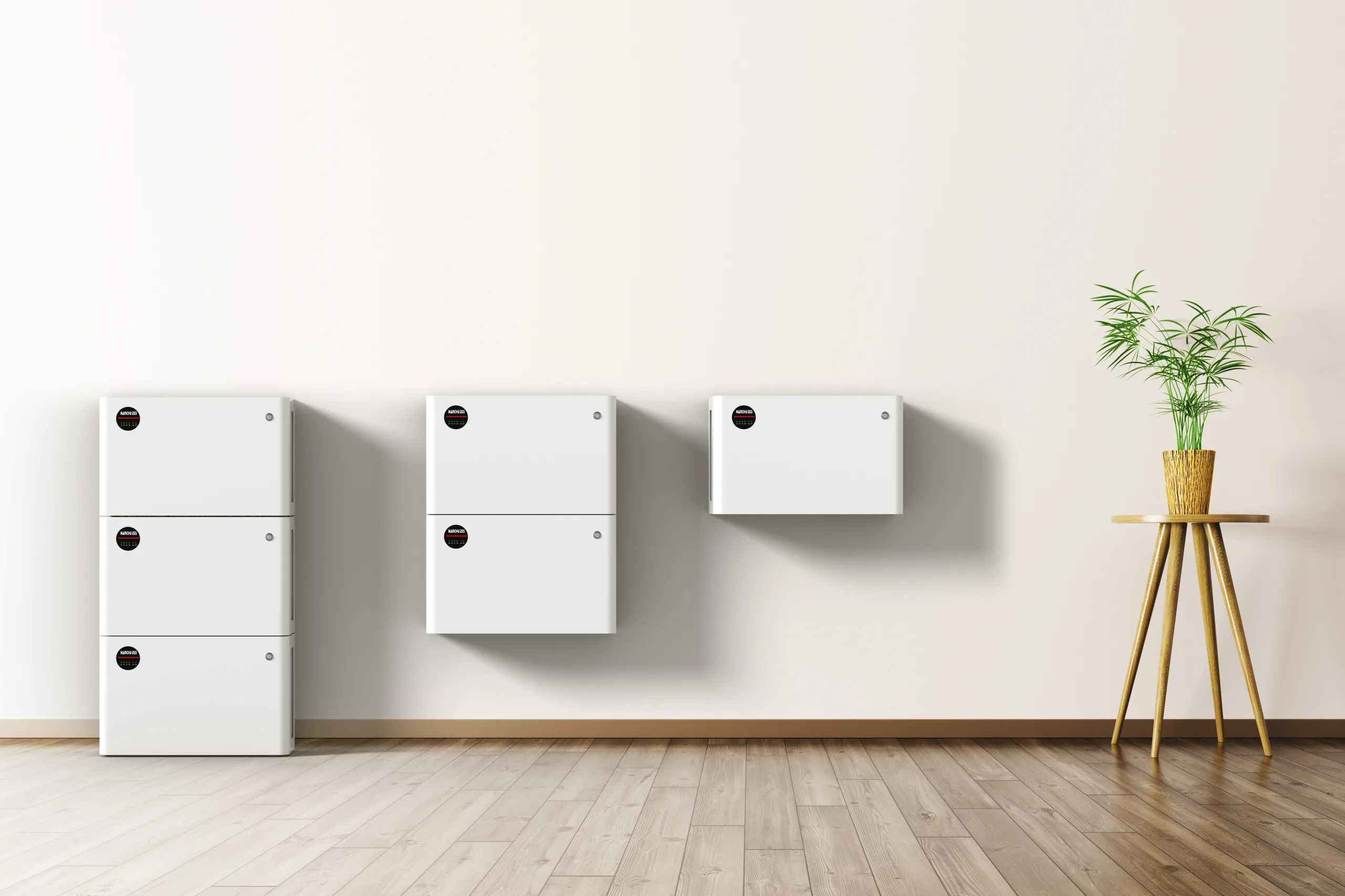

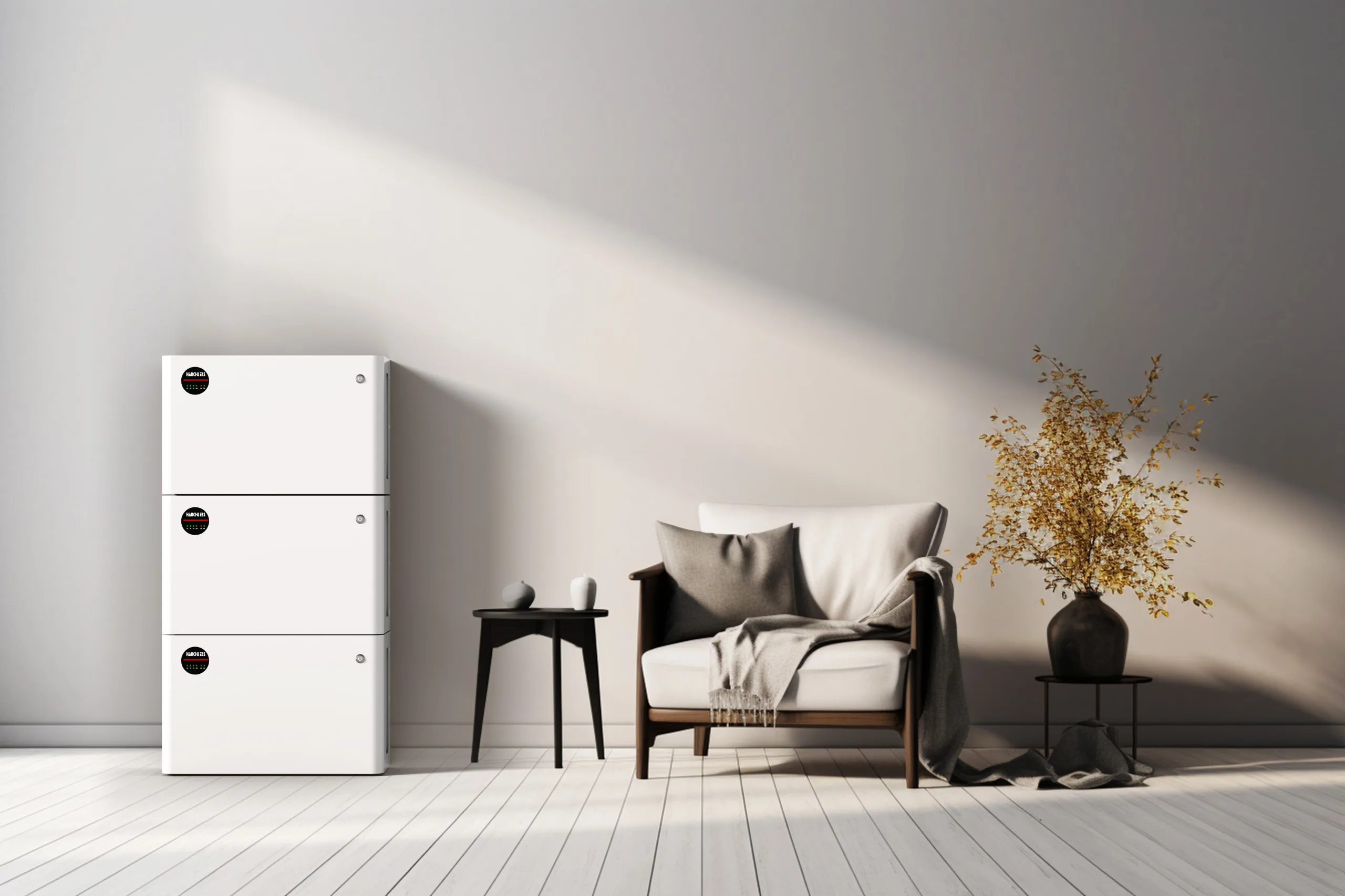

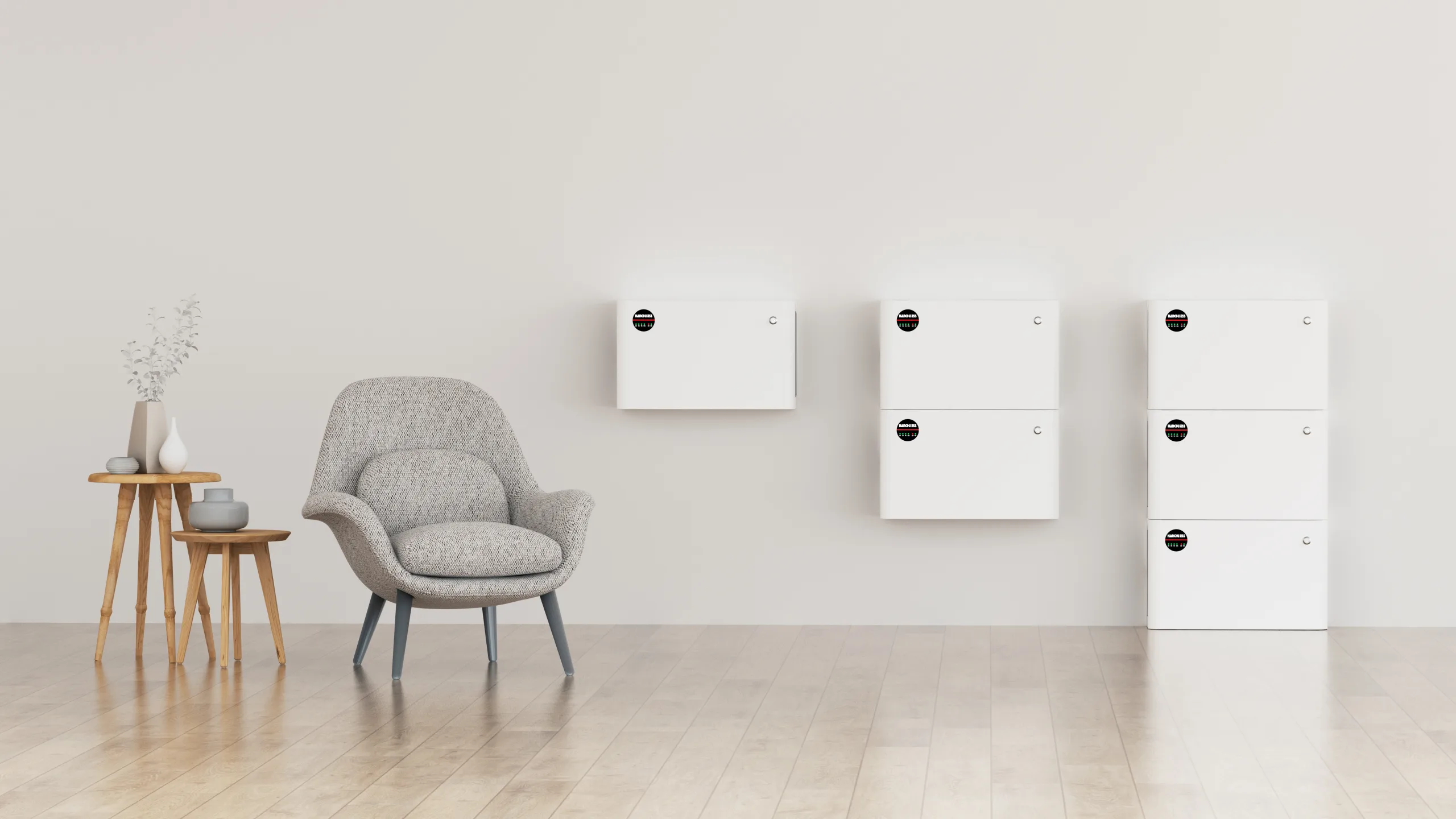

Multiple units can be connected in parallel for larger storage requirements, supporting up to 16 batteries in one system.
Safe & Reliable Operation
Built using premium LiFePO₄ battery chemistry, the Hanchu LVES battery offers:
- Enhanced thermal stability
- Long operational lifespan
- Improved charging efficiency
- High safety standards
- Reduced maintenance requirements
The intelligent smart BMS continuously protects the battery against:
- Overcharging
- Deep discharge
- Overcurrent
- Short circuits
- Overheating
Technical Specifications
| Specification | Details |
| Model | HOME-ESS-LV-3.2K |
| Energy Capacity | 3.2kWh |
| Nominal Voltage | 51.2V |
| Battery Chemistry | LiFePO₄ |
| Weight | 34.9kg |
| Depth of Discharge | 100% |
| Charge Current | 40A |
| Discharge Current | 60A |
| Protection Rating | IP54 |
| Communication | CAN / RS485 / WiFi / Bluetooth |
| Parallel Capability | Up to 16 Units |
| Warranty | 10 Years |
Ideal Applications
- Residential solar systems
- Load shedding backup
- Home energy storage
- Hybrid inverter systems
- Apartments and homes
